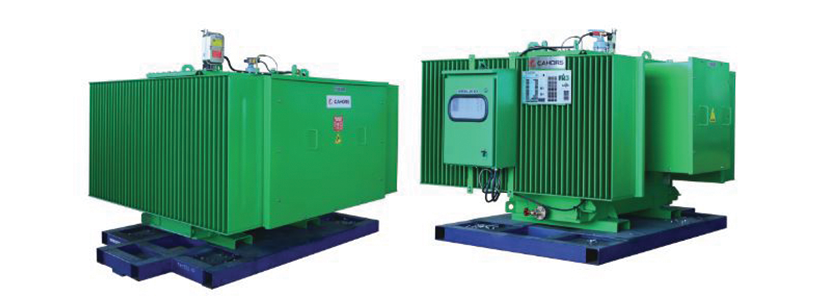

Hermetically sealed Ester oil filled "Eco Green" distribution transformers
Hermeticcaly sealed Ester (K-class) oil filled "Eco Green" distribution transformers, 25 kVA to 3600 kVA up to 33 kV class. Manufactured to indian markets.
Main characteristics
- Virtually maintenance free
- Optimizing opex
- Leak proof technology
- Completely factory fitted and ready to charge
- Aesthetic and compact in size
- Round the clock after sales services
- Type tested from NABL accredited labs
Advantages
- Fire safe and environment friendly
- Capable to take continuous overloading due to K Thermal Class Insulation
- Enhances insulation life and hence, operational life of transformer
- Dielectric fluid with high flash and fire point i.e. above 300°C
- Natural Ester oil is biodegradable, non inflammable and non hazardous
- In compliance with IS 2026/14 and IEC 60076/14
Uses
- Utilities
- Wind Power Plant
- Solar Power Plant
- Privates industries
- Hotels, Malls, Multiplex
- Hospitals
- Railways
- Defense
- Irrigation systems
- IT Park
- School, College, Institute
- Acceptable and approved by CEI Mumbai for INDOOR installations in residential and commercial buildings in Maharashtra
